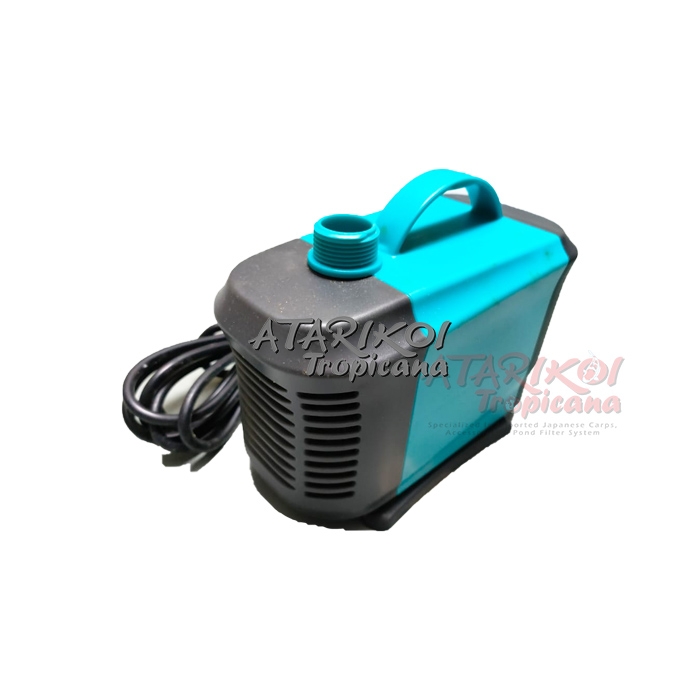

Chaning CN-4500
‹
›
- Completely submersible motor
- Extremely quiet operation
- Suction cups to fit any aquariums
- Long lasting wearproof ceramic shaft
- Suitable for fresh and sea water appliances

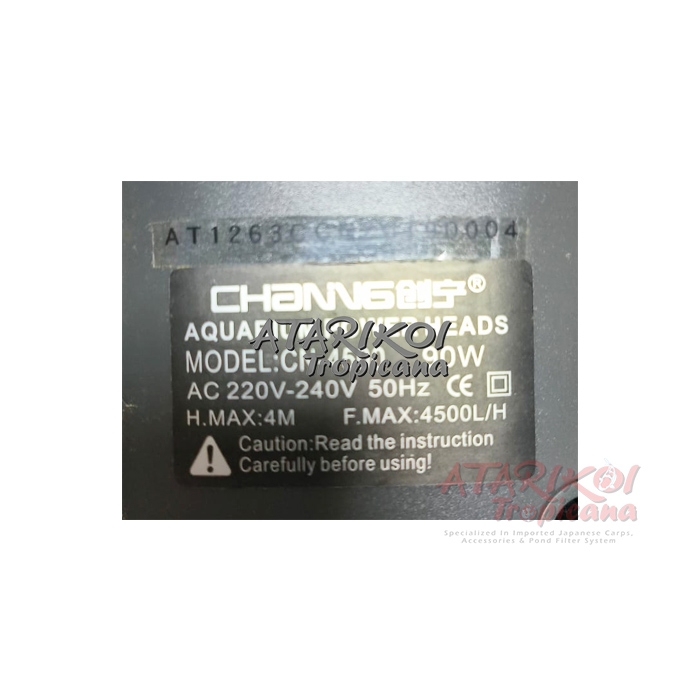

Model : CN4500
Voltage : 220-240V
Frequency 50/60Hz
Watt : 90W
F. Max : 4500 L/H
H. Max : 4M
Caution:
1. Always disconnect from the electrical socket before perform maintenance works
2. Do not run dry the pump
3. Do not lift the pump unit by pulling the wire (Power Cord)
4. The power supply cord provided for this appliance cannot be replaced
5. If the pump failed to operate, check the following
- Check and ensure there is a consistence power supply to the pump unit
Performance:
A clogged or dirty intake screen will generally reduce the performance of the pump. Hence, you must wash away the surrounded debris frequently. If less flow is required, adjust the flow control level.
Maintainence:
To perform servicing or cleaning of t he pump, firstly, removed the front cover and impeller cover, then follow by the impeller unit. Use a small brush to clean the impeller clinder or you can just wash away the internal debris under running water
Note:
Always remember to disconnect the pump unit from the electrical power supply socket before handling or performaing maintenance works. By performing regular maintenance, it can prolong the life span of the pump. During installation, ensure the power plug of the pump is to be inserted to the power socket outlet at the higher point. This is to ensure the water will not back flow via the wire to the socket outlet.
